AWARD WINNING CINEPHILE/AUDIOPHILE REFERENCE LEVEL 4K UHD UNIVERSAL MEDIA PLAYER
4K UHD, BLU RAY, DVD, SACD, DSD, NETWORKING ENABLED POWERHOUSE
Supported Media Types
- 4K UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD-SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE,, BD-Live/BONUSVIEW
- M2TS, MP4, MKV, MOV, AVI, TP, TRP, TS, 3GP, ASF, OMG, WMW
- H264/AVC, H265/HEVC, MPEG-1/2/4, VC-1, VP-8, VP-9
- FLAC, M4A, MP3, OGG, AIF/AIFF, APE, DSF, AAC, ALAC
- JPG, TIFF
Supported Audio Decoders
- Dolby Atmos
-
DTS:X
- Frequency Range: HIFI 2 channel: 20Hz~80kHz (±0.03dB); multichannel: 20Hz~80kHz (±0.05dB)
- Signal-to-noise ratio: ≥120dB(2CH RCA); ≥130dB(2CH XLR)
- Distortion Plus Noise: ≤0.0005%
- Output Level: (RCA) 2. 1±0.2Vrms. (XLR) 4.2±0.4Vrms
- Dynamic range: ≥120dB(2CH RCA); ≥130dB(2CH XLR)
- Channel resolution: ≥110dB(2CH RCA); ≥140dB(2CH XLR)
- 6-layer PCM circuit board.
- Independent wiring for each channel.
-
1 ultra-low noise 100MHz TCXO temperature compensated crystal oscillators.
-
2 independent DAC processors.
- ESS9038PRO D/A decoding for 2-channel XLR balanced and RCA unbalanced outputs-

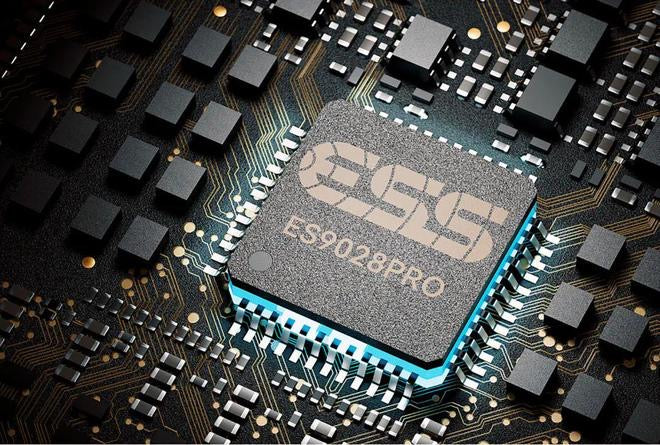

- ESS9028PRO D/A decoding for 7.1 RCA output - Pure audio mode function.
General Specifications
-
Power supply
- AC 110-120V ~ 50/60Hz / AC 220-240V ~ 50/60Hz - Power consumption: <40W, Standby<0.5W
- Dimensions: 17.51 x 12.64 x 5.23inches (445 x 321 x 133mm)
- Weight: 34.17lbs (15.5kg)
- Operating Temperature: 41°F ~ 95°F (5°C~ 35°C)
- Operating Humidity: 15% – 75%
- Includes Remote
- Hardware
- Processor: Mediatek ARM MT8581
- CPU Core: Quad-core ARM Cortex-A53 CPU cluster
- CPU Bit: 64-Bit
- GPU Type: Arm Mali-T860 MP2
- Memory: 12Gb Samsung DDR and 4Gb NAN
-
Digital Board:
- 6-Layer PCB Design
- 27MHz Ultra-low noise TCXO crystal oscillator- 10x High-precision and quality LDO regulators
ABOUT THE UDP900

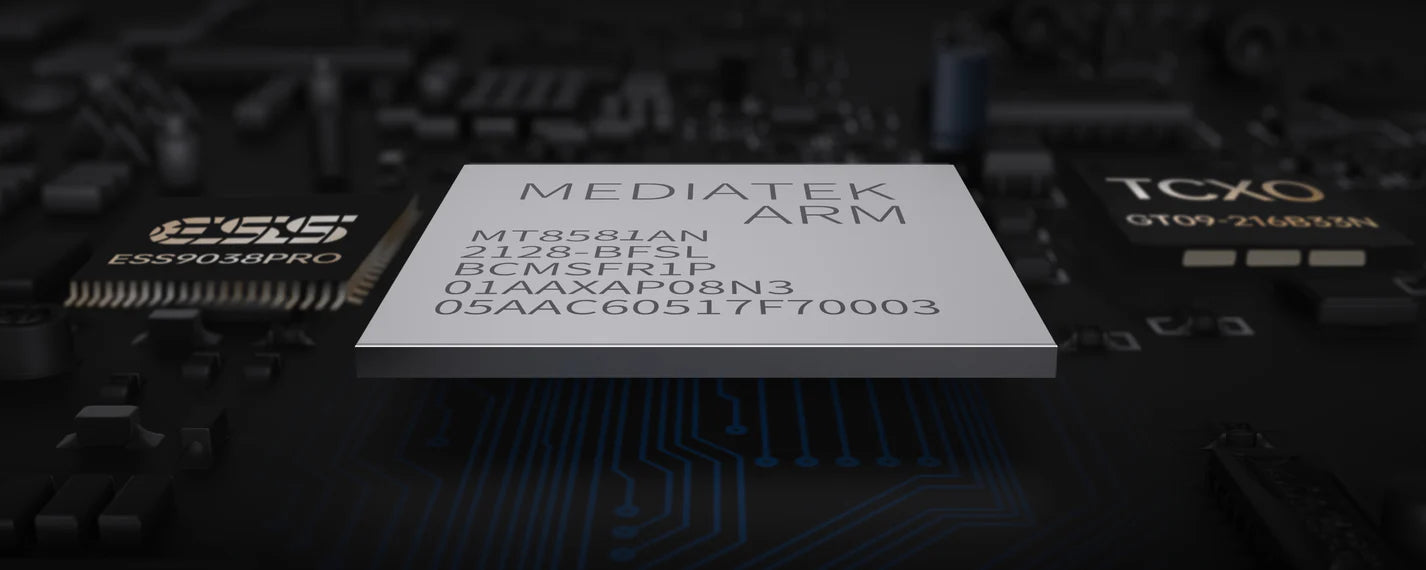

Equipped with the famous professional quad-core system Mediatek MT8581 chipset, the UDP900 4K UHD Blu-ray player features advanced image decoding and processing technology. UDP900 supports Dolby Vision and HDR10+ high dynamic image standards, Dolby Atmos, DTS:X. ESS9038PRO D/A decoding for 2-channel XLR balanced and RCA unbalanced outputs, ESS9028PRO D/A decoding for 7.1 RCA output. Support for XMOS USB Audio input, SMB, DLNA, or NFS.
- Universal Disc Player – Ultra HD Blu-ray, Blu-ray, Blu-ray 3D, DVD, DVD Audio, SACD, CD
- HDR10 / HDR10+ / Dolby Vision – Bring extraordinarily rich color, contrast and brightness to the screen.
- HDR to SDR Conversion – Convert HDR to SDR, with BT.2020/BT.709/BT.601 color space support.
- 36-bit Deep Colour/”x.v.Colour” – Enhance SD video content with richer colors.
- True 24p Cinema – Many Blu-ray and 4K Ultra HD Blu-ray discs are encoded at 24 frames per second, the same frequency as the original film screened in movie theaters.
- 4K Upscaling – Enhance the home cinema experience by quadrupling Full HD 1080p resolution with 4K UHD (3840 x 2160) upscaling of all video contents.
- Dual HDMI Output – Separate audio and video streams for full compatibility with older AV receivers.
- Video Settings – Set the brightness, contrast, color saturation, hue, sharpness and noise reduction.
- Audio Video Sync – Fine-tune audio/video synchronization (Forward/Backward).
- Backlit Remote Control – Easily control your player with backlit keys.

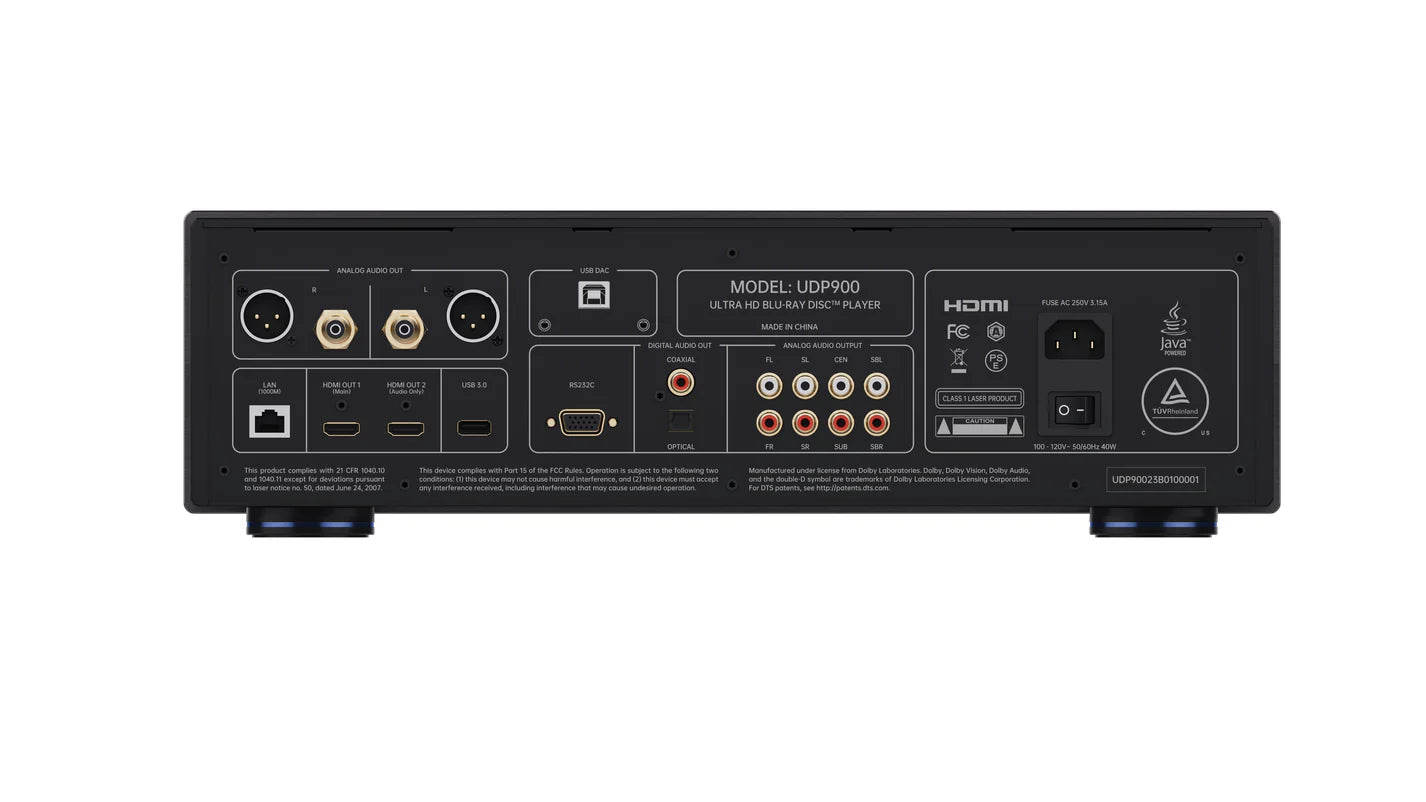

- XLR/RCA Output – Gold plated balanced and unbalanced audio analog terminals for convenient analog output.
- Fast boot / Fast menus – Quickly access the general menu and launch discs.
- Multimedia Playback – Easily play most types of audio and video files from a USB hard drive or the network DLNA, SMB or NFS (MKV, FLAC, AIFF, MP3, JPG, ...).
- Solid Quality in Chassis Construction – Solid high rigidity metal body and a double layer chassis structure.
Present Excellent Picture and Sound
UDP900 supports Dolby Vision and HDR 10+ high dynamic image standards. ESS9038PRO D/A decoding for 2 - channel XLR balanced and RCA unbalanced outputs, ESS9028PRO D/A decoding for 7.1 RCA output. Support for XMOS USB Audio input.
HDR Technology
The UDP900 has eye-popping brightness, contrast and gorgeous colors. Picture is rich and full, with vivid colors, even in low light and backlight environments. UDP900 supports HDR10, HDR10+ and Dolby Vision with stunning HDR to SDR conversion, with BT.2020/BT.709/BT.601 color space support.
High Fidelity Lossless Sound
The UDP900 can decode DSD64/128, DSD64 multichannel and 192kHz/24bit formats with support for AIFF, ALAC, APE, FLAC and WAV audio files. Enjoy 4K HD picture quality without missing every detail of sound. The UDP900 supports Dolby TrueHD and DTS-HD Master Audio, as well as Dolby Atmos and DTS-X, allowing you to enjoy the best panoramic sound and an immersive experience.
Easy to use interface
The UDP900 Interface is designed to provide you a smooth and intuitive experience, allowing easy access to various settings and local USB devices and networks.
4K Upscaling
In addition to the 4K Ultra HD Blu-ray compatibility, the UDP900 can upscale low resolution video sources up to 4K UHD resolution 50/60Hz (3840 x 2160) which is four times the resolution of Full HD 1080p, improving picture quality for the best home video experience possible.
Full Multimedia Experience
Fully compatible with a variety of disc formats including 4K UHD BD, BD, BD-R, BD-RE, DVD-R/RW, DVD+R/RW, DVD-Video, DVD-Audio, AVCHD, SACD, CD, CD-R/RW. In addition, it can easily connect to numerous media resources through USB 3.0, supporting up to 16TB hard drive, sharing video, music, and pictures files through DLNA, SMB and NFS supporting a wide range of media formats including MKV, AVI, MP4, WAV, FLAC, APE, DSD, etc., users can easily play and manage media files in local and LAN storage devices.
Fully compatible with a variety of disc formats including 4K UHD BD, BD, BD-R, BD-RE, DVD-R/RW, DVD+R/RW, DVD-Video, DVD-Audio, AVCHD, SACD, CD, CD-R/RW. In addition, it can easily connect to numerous media resources through USB 3.0, supporting up to 16TB hard drive, sharing video, music, and pictures files through DLNA, SMB and NFS supporting a wide range of media formats including MKV, AVI, MP4, WAV, FLAC, APE, DSD, etc., users can easily play and manage media files in local and LAN storage devices.

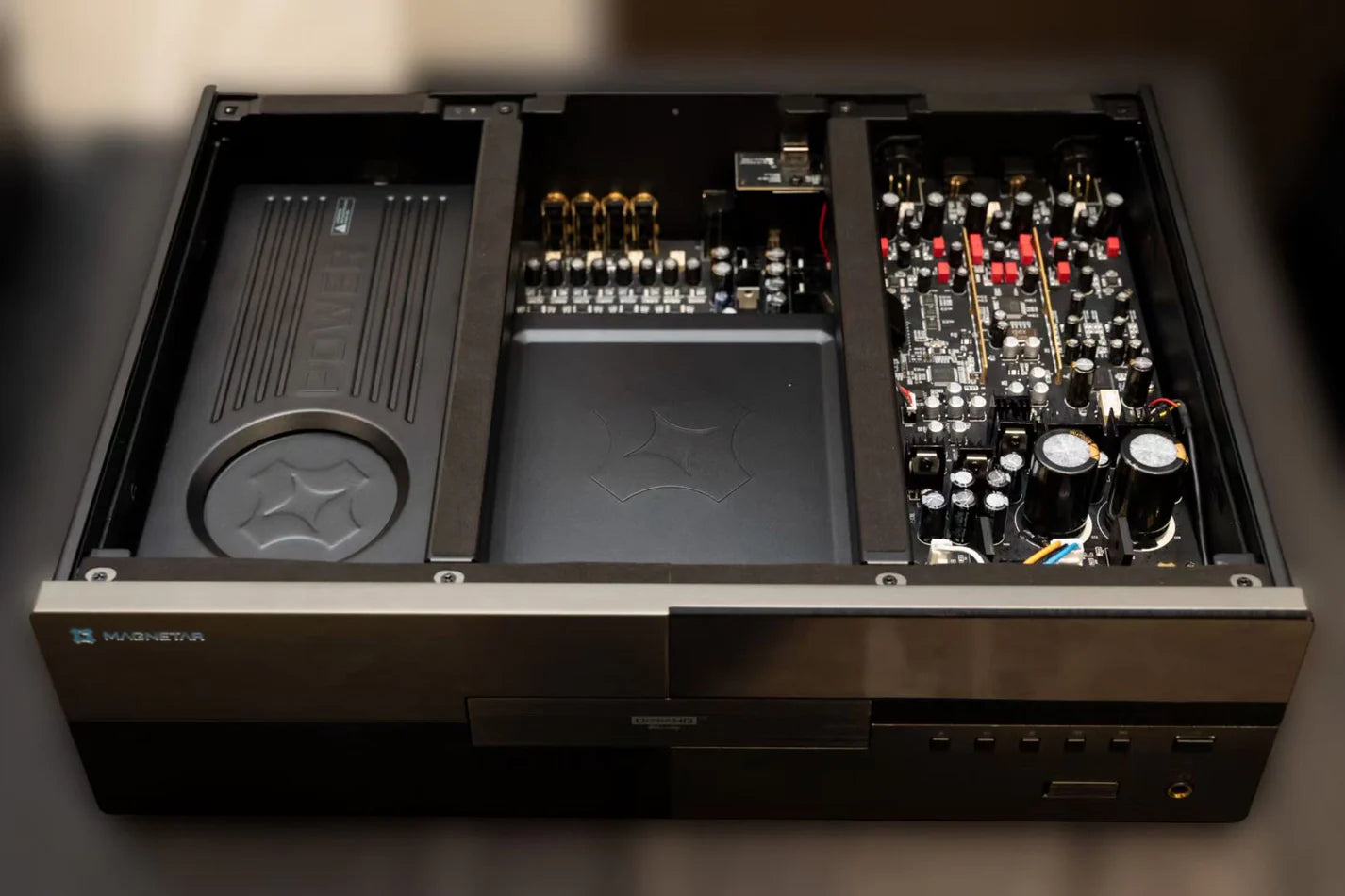

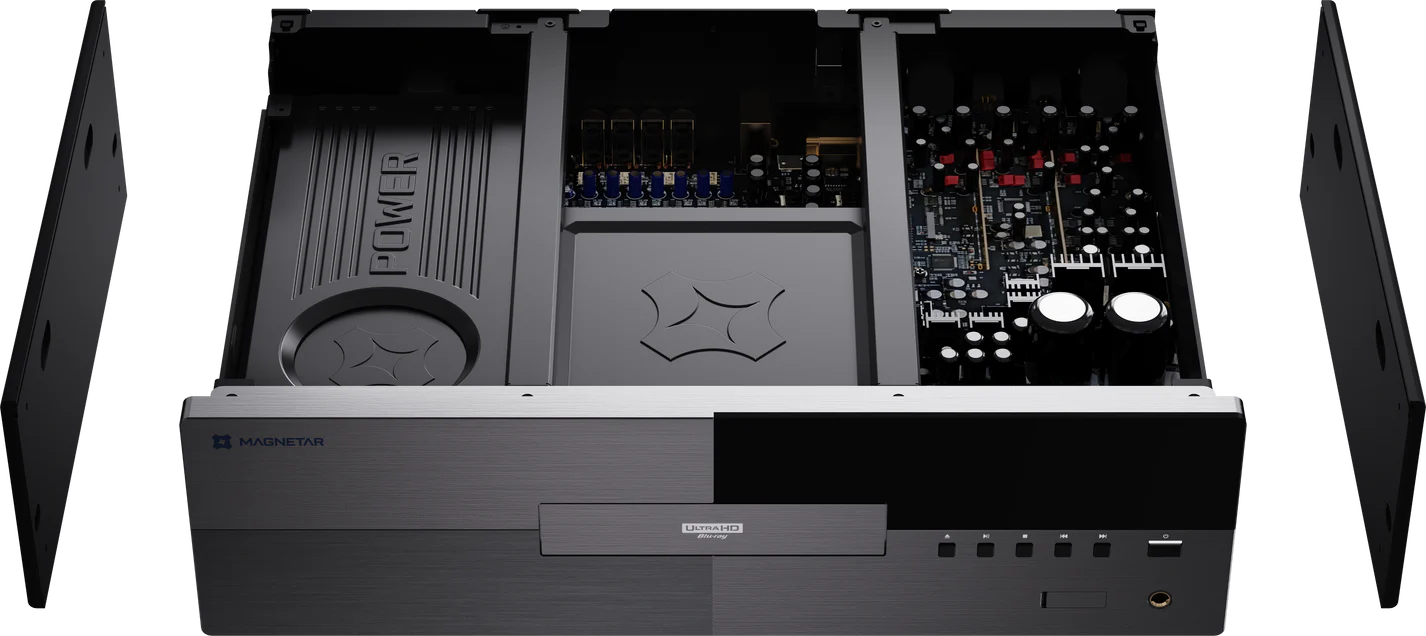

Elegant and Solid quality in Chassis Construction
UDP900 adopts an all-aluminum alloy body and a reinforced double layer chassis structure, the internal main components are independently shielded by metal casing, greatly reducing vibration, noise and external magnetic field interference, bringing pure and high-resolution audio and video quality.
UDP900 adopts an all-aluminum alloy body and a reinforced double layer chassis structure, the internal main components are independently shielded by metal casing, greatly reducing vibration, noise and external magnetic field interference, bringing pure and high-resolution audio and video quality.

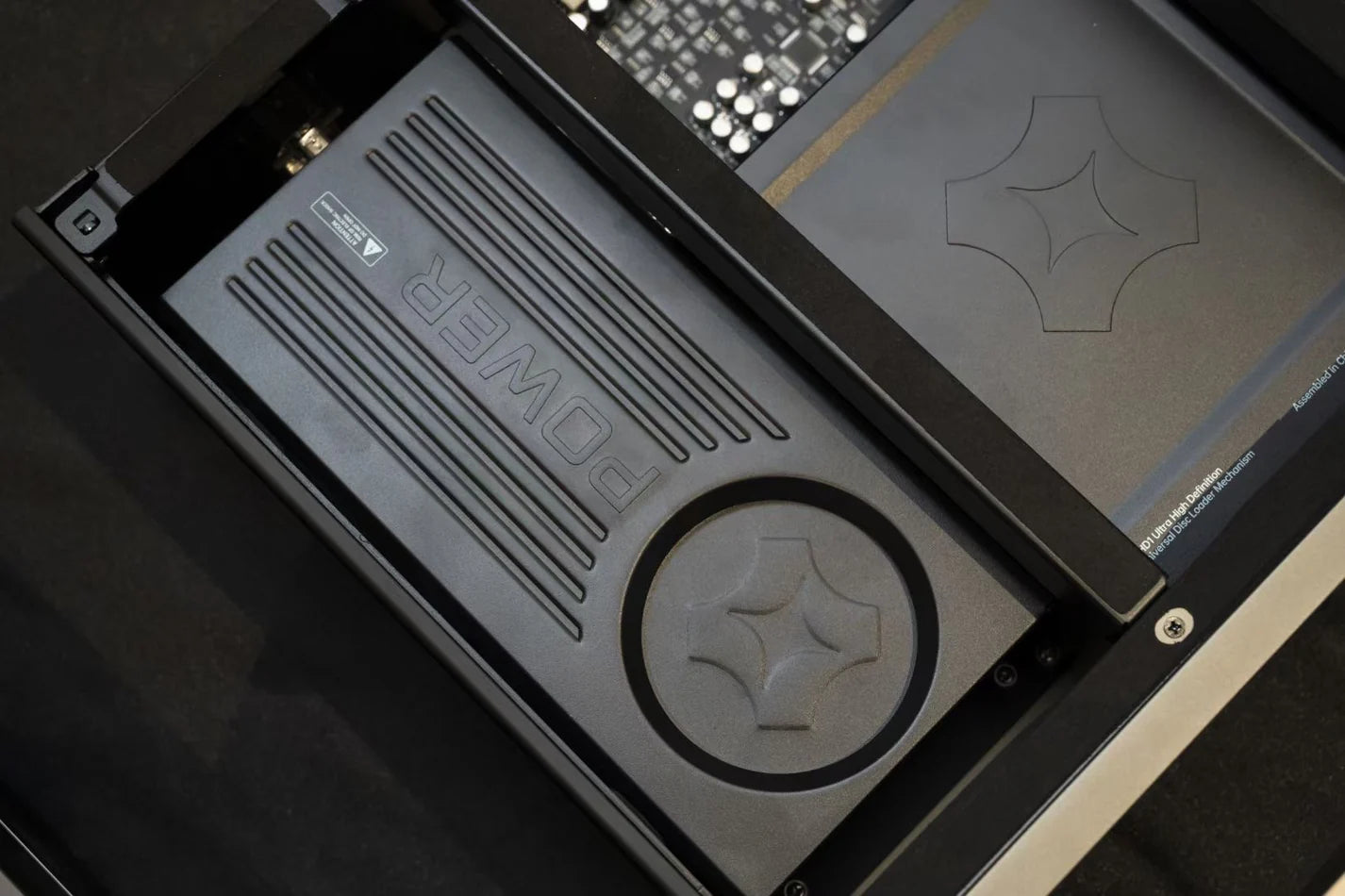

Dual Power Supply Design
Customized high-power switching power supply with high transient response provides power for the digital main board section, 60W high-power low noise transformer with a two-stage filter design along with a multitude of Japanese Rubycon electrolytic capacitors are used to meet the high transient response required by surround sound systems and high-resolution audio. A separate metal case dampens noise, providing stability and quietness, further enhancing the audio and video quality. 60W toroidal transformer supplies power for analog audio. Using imported magnetic core, high quality oxygen free copper wiring, metal shields and full epoxy filling is used to reduce vibration noise and heat generation improving output and audio quality
